Data Processing Pipeline

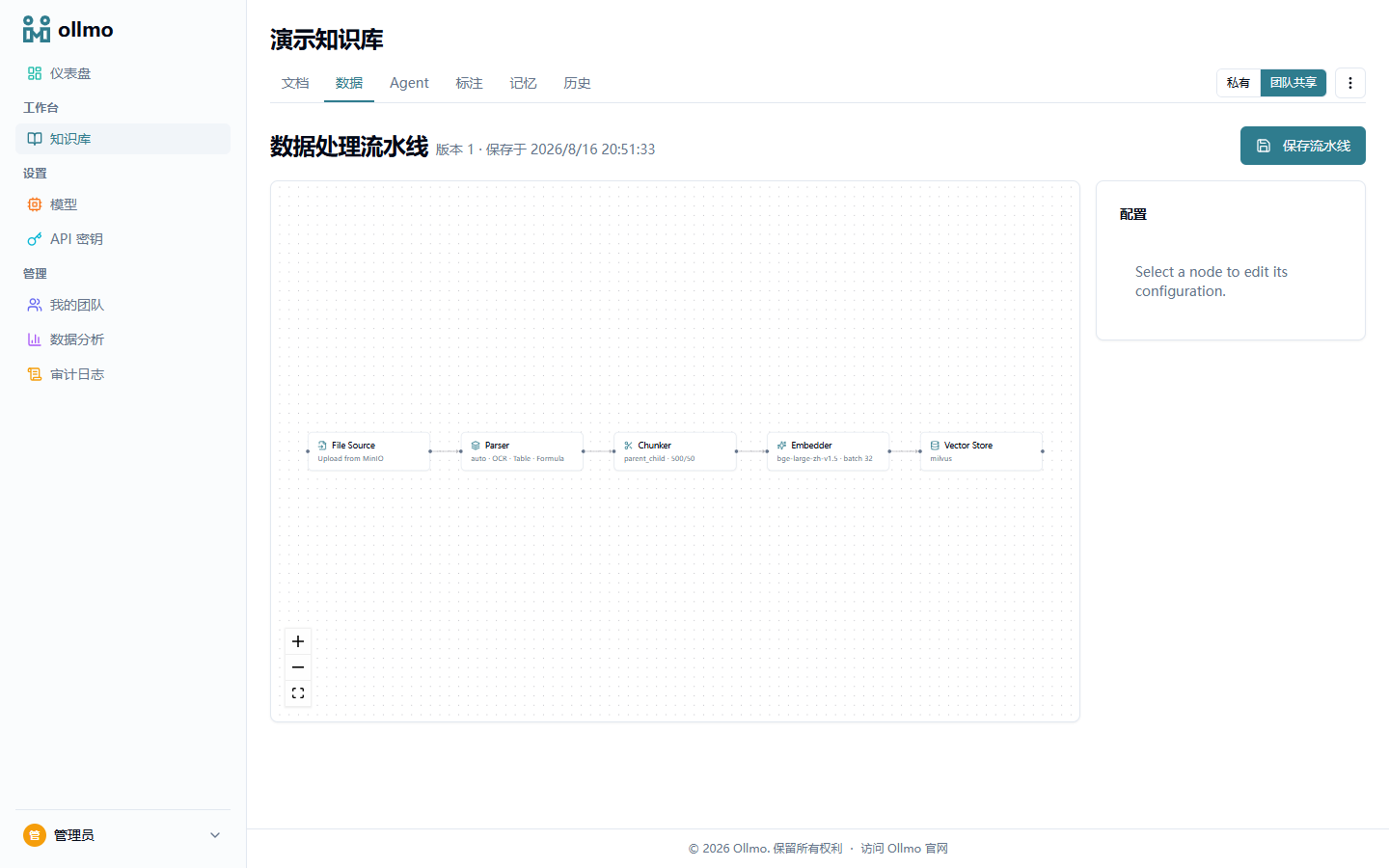

Every knowledge base has a visual ingestion pipeline (a React Flow canvas): documents pass through five nodes from upload to searchability. Open the knowledge base → "Pipeline" tab to view it:

Node reference

Node	Purpose	Key configuration
Source	Document entry point	File upload / URL import
Parser	Extract text and structure	Engine: auto / MinerU / local; OCR, formula, and table toggles
Chunker	Split text	Strategy, chunk size, overlap length
Embedder	Generate vectors	Embedding model, batch size
Sink	Write to the vector store	Type (Milvus)

Chunking strategies

Strategy	Identifier	Best for
Paragraph	paragraph	Packs paragraphs into chunks, preserving semantic integrity (the fallback for unknown strategies)
Fixed length	token	Fixed-size chunking by character count (overlap configurable); well-structured documents, fast
Parent-child	parent_child	Child chunks for retrieval, parent chunks fed to the LLM; balances accuracy and context — recommended default
Header-aware	header	Splits by document heading hierarchy, preserving section structure
Q&A	qa	CSV question/answer pairs (one Q&A per row); a hit returns the standard answer directly

The parent chunk keeps a larger context; when a child chunk is hit during retrieval, the parent chunk's content is passed into the LLM, yielding more complete answers.

Parsing engines

• auto: prefers MinerU and falls back to the local parser when unavailable;
• MinerU: containerized deployment (optional GPU), best at PDF layout, formulas, and tables — see Docker Deployment;
• Local parser: lightweight and zero-dependency, supporting common formats such as Markdown, TXT, DOCX, and PDF.

:::tip When do changes take effect After you change the pipeline configuration, newly uploaded documents are ingested with the new configuration; to rebuild existing documents, choose "Re-parse" from the document list. :::
